Routing

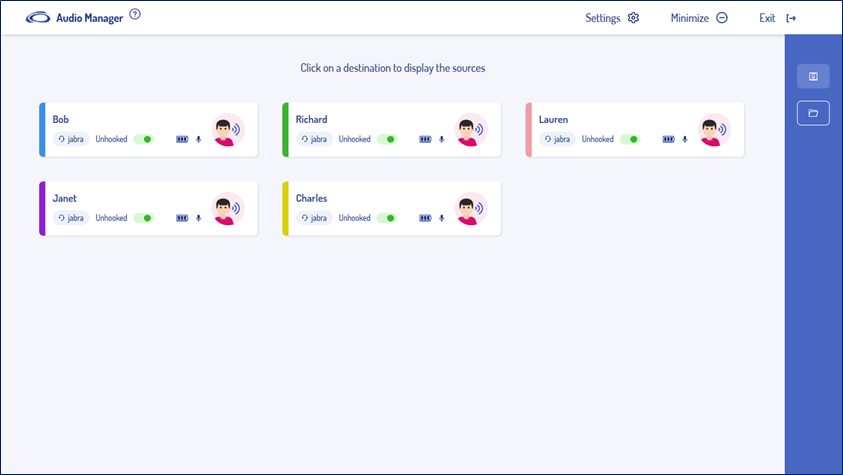

Once the equipments are configured, the main menu is displayed as follows:

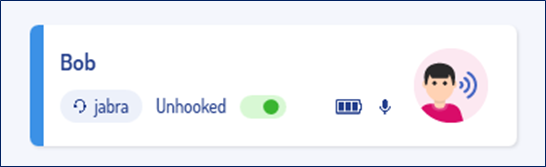

Each equipment looks the same:
- Bob: Define name of the equipment during configuration. It is possible to change the name from the settings.
- Jabra : equipment type.
Note: The three following features are only available with Jabra-branded pieces of equipment.
- Unhooked / Hooked : The icon
displays the equipment state. Indicates if the equipment is hooked or unhooked from its docking station. It is possible to force one of these states by clicking on it. - The icon
displays the battery level of the equipment. - The icon
displays the microphone state. Indicates if the microphone is muted or not. Clicking on this icon allow to mute or unmute the microphone.

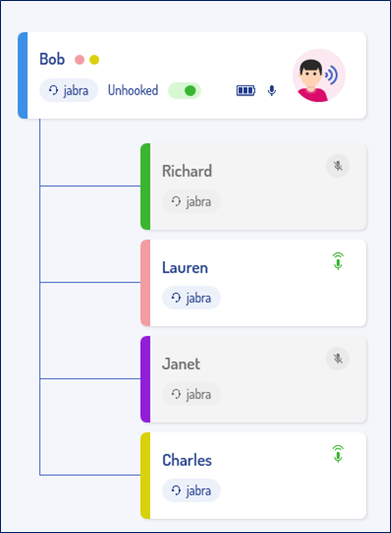

By clicking on an equipment, a submenu drops down to make the audio routing of each equipment :
Active equipments are displayed on a white background with a green microphone icon. Inactive equipments are displayed on a grey background with a cut microphone icon.
The pink and yellow dots near the name « Bob » indicate the colors of the devices he Is listening to.
Left clicking on the microphone Icon allows to enable or disable the communication between them.
Save

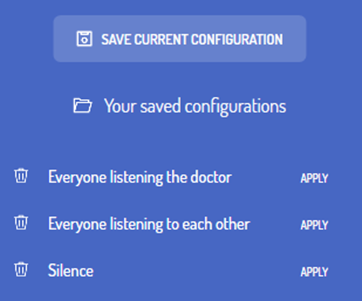

To save a routing configuration, click on the « Floppy Disk » button on the right side of the application:
All the routing configurations are saved under " Your saved Configuration "
